DC CORELESS MOTOR

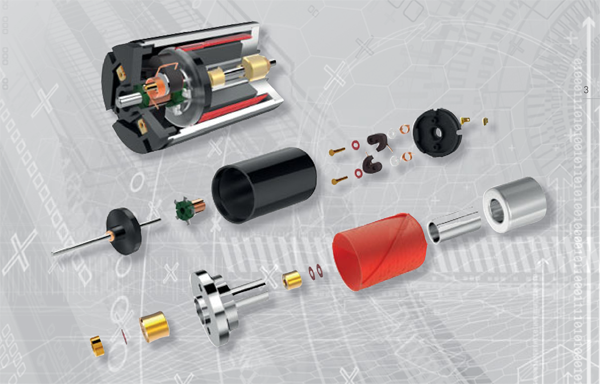

Utilizing precious metal brushes, high performance Nd-Fe-B magnet, small gauge high strength enamelled winding wire, the motor is a compact, light weight precision product. This high effciency motor features low starting voltage and low power consumption. As a drive motor, some typical applications include small household appliances, mini UAV’s, and remote control hobby products. The motor also provides the vibration function in wearable health care equipment, mobile phones and tablet PC’s.

Downloads

PDFs, Catalogues

DC CORELESS MOTOR (PDF, 2.516 KB)

LOAD DATA FORM (PDF, 88 KB)

Technical Data

Motor No.	Dia mm	Length mm	Max. Power	Max. Voltage	Page
L0408N3M	4.08 mm	8.10 mm	0.20 W	3.40 - 5.00 V	4
L0410N3M	4.08 mm	10.10 mm	0.22 W	3.00 V	5
L0412N3M	4.08 mm	12.10 mm	0.36 W	3.40 V	6
L0510N3M	5.00 mm	9.80 mm	0.25 W	3.50 - 4.20 V	7
L0609N3M	6.00 mm	9.00 mm	0.25 W	3.00 V	8
L0610N5M	6.00 mm	10.40 mm	1.00 W	3.20 - 5.00 V	9
L0612N3M	6.00 mm	12.20 mm	0.70 W	3.00 - 4.00 V	10
L0612N5M	6.00 mm	12.20 mm	1.90 W	3.20 - 4.50 V	11
L0614N5M	6.00 mm	13.90 mm	1.80 W	3.00 - 3.700 V	12
L0615N5M	6.00 mm	15.00 mm	2.00 W	2.50 - 3.40 V	13
L0710N5M	7.00 mm	10.20 mm	2.00 W	3.00 - 8.00 V	14
L0714N5M	7.00 mm	14.10 mm	1.40 W	6.00 - 7.40 V	15
L0716N5M	7.00 mm	16.70 mm	4.30 W	3.20 - 3.40 V	16
L0720N5M	7.00 mm	20.00 mm	4.30 W	3.00 - 3.20 V	17
L0816N5M	8.00 mm	16.00 mm	1.70 W	3.40 - 6.00 V	18
L8.520N5M	8.50 mm	20.40 mm	8.10 W	3.00 - 3.40 V	19
L0820N5M	8.00 mm	20.00 mm	5.60 W	3.00 - 3.70 V	20
L8.523N5M	8.50 mm	23.00 mm	4.90 W	3.00 V	21
L1013N3M	10.00 mm	13.00 mm	0.40 W	6.00 V	22
L1015N5M	10.00 mm	15.00 mm	1.90 W	7.40 V	23
L1020N5M	10.00 mm	20.70 mm	13.40 W	3.70 V	24
L1212N5M	12.00 mm	12.30 mm	2.70 W	6.00 V	25
L1213N5M	12.00 mm	13.00 mm	0.90 W	7.40 V	26
L1215N5M	12.00 mm	14.60 mm	5.00 W	6.00 - 8.00 V	27
L1416N5M	14.00 mm	16.30 mm	2.20 W	4.80 V	28
L1515N5M	15.00 mm	15.20 mm	8.50 W	7.40 V	29
L1620N5M	16.00 mm	19.60 mm	1.60 W	5.00 V	30
L1625N5M	16.00 mm	25.00 mm	2.80 W	6.00 V	31
L1630N5M	16.00 mm	30.00 mm	2.00 W	5.00 V	32
L1718N5M	17.40 mm	18.10 mm	9.40 W	7.40 V	33
L1722N5M	17.40 mm	22.10 mm	11.10 W	7.40 V	34
L2233N5M	22.00 mm	33.00 mm	7.00 W	12.00 V	35
VL0408N3M	4.08 mm	8.10 mm	Vibration	2.70 - 3.00 V	36
VL0510N3M	5.00 mm	9.80 mm	Vibration	3.00 V	37
VL0610N5M	6.00 mm	10.40 mm	Vibration	1.30 - 1.50 V	38
VL0612N3M	6.00 mm	12.20 mm	Vibration	1.30 V	39
VL0614N5M	6.00 mm	13.90 mm	Vibration	3.00 V	40
VL0615N5M	7.00 mm	15.30 mm	Vibration	3.00 V	41
VL0716N5M	7.00 mm	16.70 mm	Vibration	3.00 - 3.70 V	42
VL1015N3M	10.00 mm	15.00 mm	Vibration	1.30 V	43
